Mini Solder DP Socket Connector Receptacle 0.5AMP Right Angle

Name: Mini Solder DP Socket Connector Receptacle 05AMP Right Angle
Brand: Jinze
Price: 1 USD

Buy cheap Mini Solder DP Socket Connector Receptacle 0.5AMP Right Angle product

Brand Name : Jinze

Model Number : DP14A-LBA2R-RHB

Certification : SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 80000pcs/ Day

Delivery Time : 15-25 Days

Packaging Details : Reel Packaging

Material : LCP UL 94 V-0 HF

Color : Black

Gender : Receptacle (Female)

Application : Information Technology Sector/ Automotive Industry/ Gaming Consoles

Number of Contacts : 20 Contact

Number of Ports : 1 Port

Current Rating : 500mA

Mounting Style : PCB Mount

Factory Pack Quanity : 330pcs per Reel

OEM/ODM : Yes

Termination Method : Solder

Connector System : Wire to Board

Contact Now

Mini Solder DP Socket Connector Receptacle 0.5AMP Right Angle

Specifications

Housing	LCP UL94V-0 Black
Contact	Brass (C2680), T=0.20mm
Shield	C2680, T=0.40mm
Cover	LCP UL 94V-0 Black
Mylar	Polyimide
Terminal Finish	Goldflash 0.8u" Min. on Contact Area
	Matte Tin 50u" plating on solder tail
	Under Nickel Plating 50u" Min Over All
Shield	50u" Min. Nickel underplated Overall

Images:

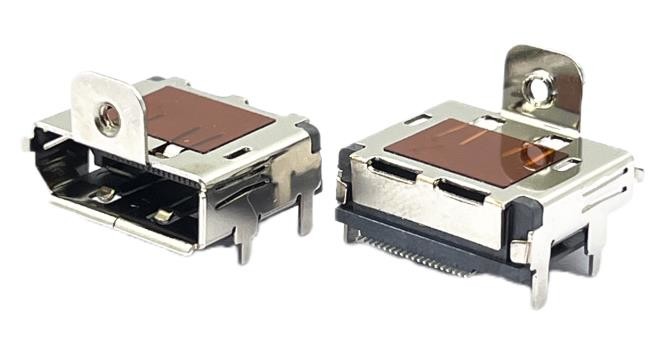

Mini Solder DP Socket Connector Receptacle 0.5AMP Right Angle

Drawings:

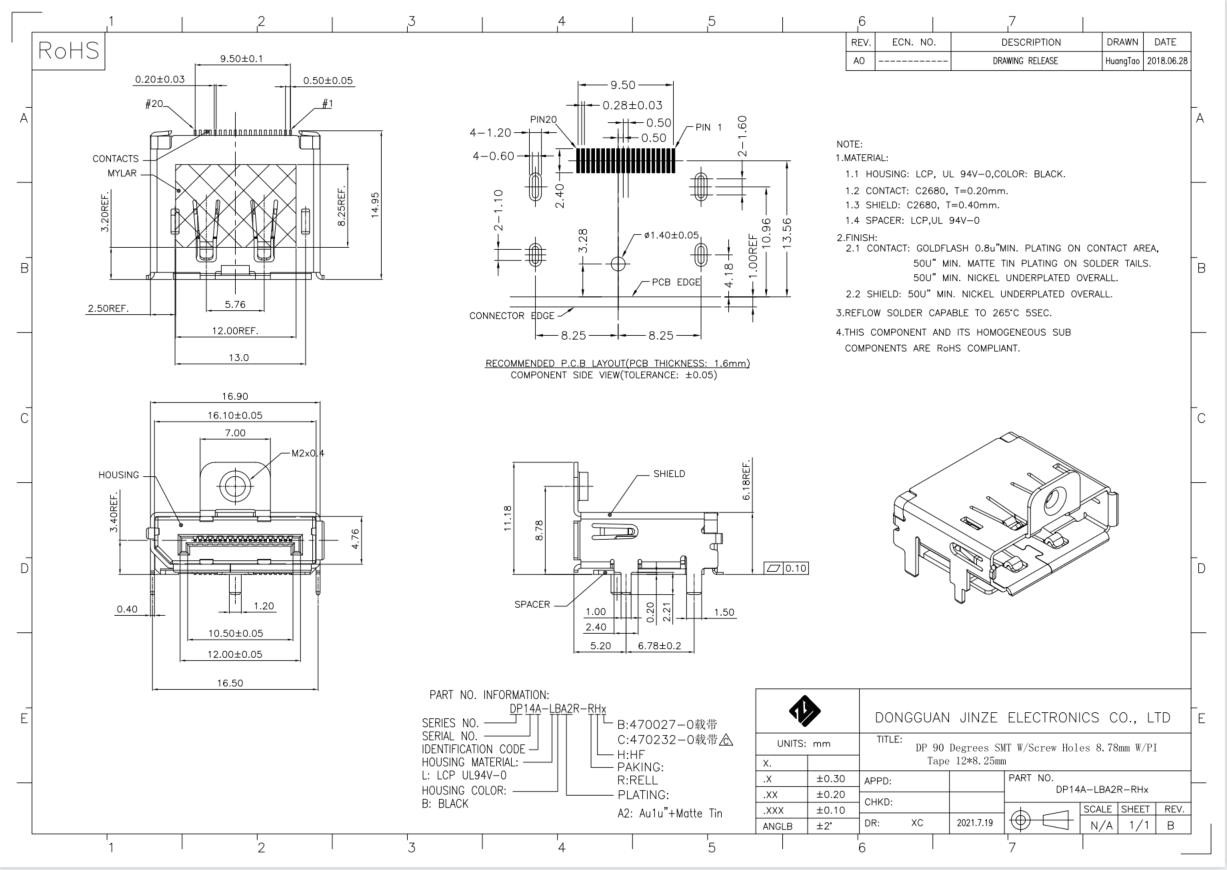

Mini Solder DP Socket Connector Receptacle 0.5AMP Right Angle

DP14A-LBA2R-RHB.pdf, if you need the Drawing, pls download it!

Features and Benefits

• PCB space saving footprint
• D-shaped chamfered interface provides polarization
• Fully shielded against EMI and RFI emissions
• Detent locks and latch holes for secure mating connection
• PCB alignment pegs
• PCB solder pegs for in creased rigidity and retention to PCB

Product Application Information

These DisplayPort receptacle connectors form part of the DisplayPort interconnection system which is used for delivering high definition video of up to 10.8 Gbit/s and audio signals. Applications include games consoles, monitors, personal computers, projectors, set-top boxes, TV displays and work stations

Is this socket protected against interference?

Yes, this socket is fully shielded for protection against EMI (electromagnetic interference) and RFI (radio frequency interference), so you can rest assured you'll get reliable signal transmission.
