Au 15u DP Socket Connector Solder USB Connector PCB Nickel Plating 50u

Name: Au 15u DP Socket Connector Solder USB Connector PCB Nickel Plating 50u
Brand: Jinze
Price: 1 USD

Buy cheap Au 15u DP Socket Connector Solder USB Connector PCB Nickel Plating 50u product

Brand Name : Jinze

Model Number : DP07S-LBA4V-RHA

Certification : SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 80000pcs/ Day

Delivery Time : 15-25 Days

Packaging Details : Reel Packaging

Material : LCP UL 94 V-0 HF

Color : Black

Gender : Receptacle (Female)

Application : Information Technology Sector/ Automotive Industry/ Gaming Consoles

Number of Contacts : 20 Contact

Number of Ports : 1 Port

Current Rating : 0.5AMP Max

Mounting Angle : Right Angle

Mounting Style : PCB Mount

Factory Pack Quanity : 330pcs per Reel

OEM/ODM : Yes

Contact Now

Au 15u DP Socket Connector Solder USB Connector PCB Nickel Plating 50u

Specifications

Housing	LCP UL94V-0 Black
Spring	SUS301, Cleaning
Terminal	Brass (C2680), T=0.20mm
Shell	SUS201, T=0.40mm
Cover	LCP UL 94V-0 Black
Mylar	Polyimide
Terminal Finish	Au 15u" Plating on Contact Area
	Matte Tin 80u" plating on solder tail
	Under Nickel Plating 50u" Min Over All
Shield	50u" Min. Nickel
Current Rating	0.5A Max
Voltage Rating	40V
Contact Resistance	40mΩ Max
Insulation Resistance	Unmated 100mΩ Min. At 500 VDC
	Mated 10mΩ Min. At 150 VDC
Dielectric Withstanding Voltage	500 V AC/1 Minute
Durabilty	10000 Cycles
Insertion Force	4.5Kgf Max
Extracition Force	1.0~4.0kgf Min.
Operation Temperature	-20°C~+85°C

Images

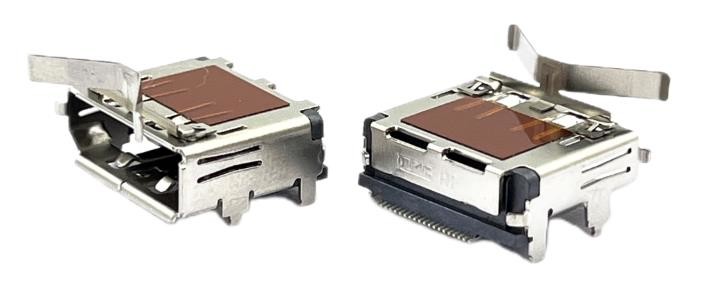

Au 15u DP Socket Connector Solder USB Connector PCB Nickel Plating 50u

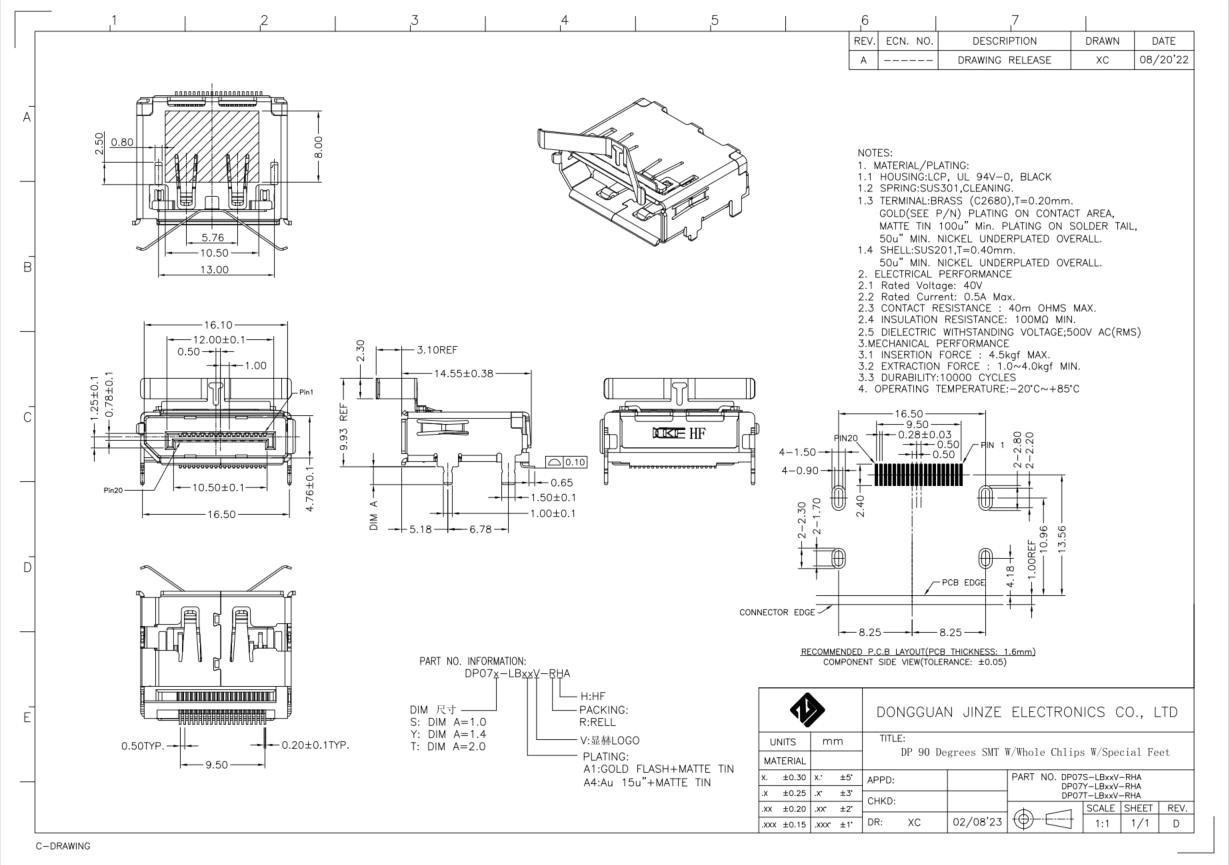

DP07S-LBA4V-RHA.pdf, if you need the Drawing, pls download it

Our Advantage:

♦ Quickly Response Automatic Production: Quotation-Drawing (2D&3D)-Delivery time-Discuss

♦ Production Capacity: High Speed Metal Stampling / Precision injection/ Automatic Production/ Monthly Output 5000-8000Kpcs

♦ Quality Objectives: Products passing rate of shippment:>98%；Customer Satisfaction Inventory:>90%;

♦ OEM / ODM Service: Technical Support: Provide Program for discussion, design, development and approval. Suggestions for improvement if necessary.

Features and Benefits

• PCB space saving footprint
• D-shaped chamfered interface provides polarization
• Fully shielded against EMI and RFI emissions
• Detent locks and latch holes for secure mating connection
• PCB alignment pegs
• PCB solder pegs for in creased rigidity and retention to PCB

Product Application Information

These DisplayPort receptacle connectors form part of the DisplayPort interconnection system which is used for delivering high definition video of up to 10.8 Gbit/s and audio signals. Applications include games consoles, monitors, personal computers, projectors, set-top boxes, TV displays and work stations

Is this socket protected against interference?

Yes, this socket is fully shielded for protection against EMI (electromagnetic interference) and RFI (radio frequency interference), so you can rest assured you'll get reliable signal transmission.
