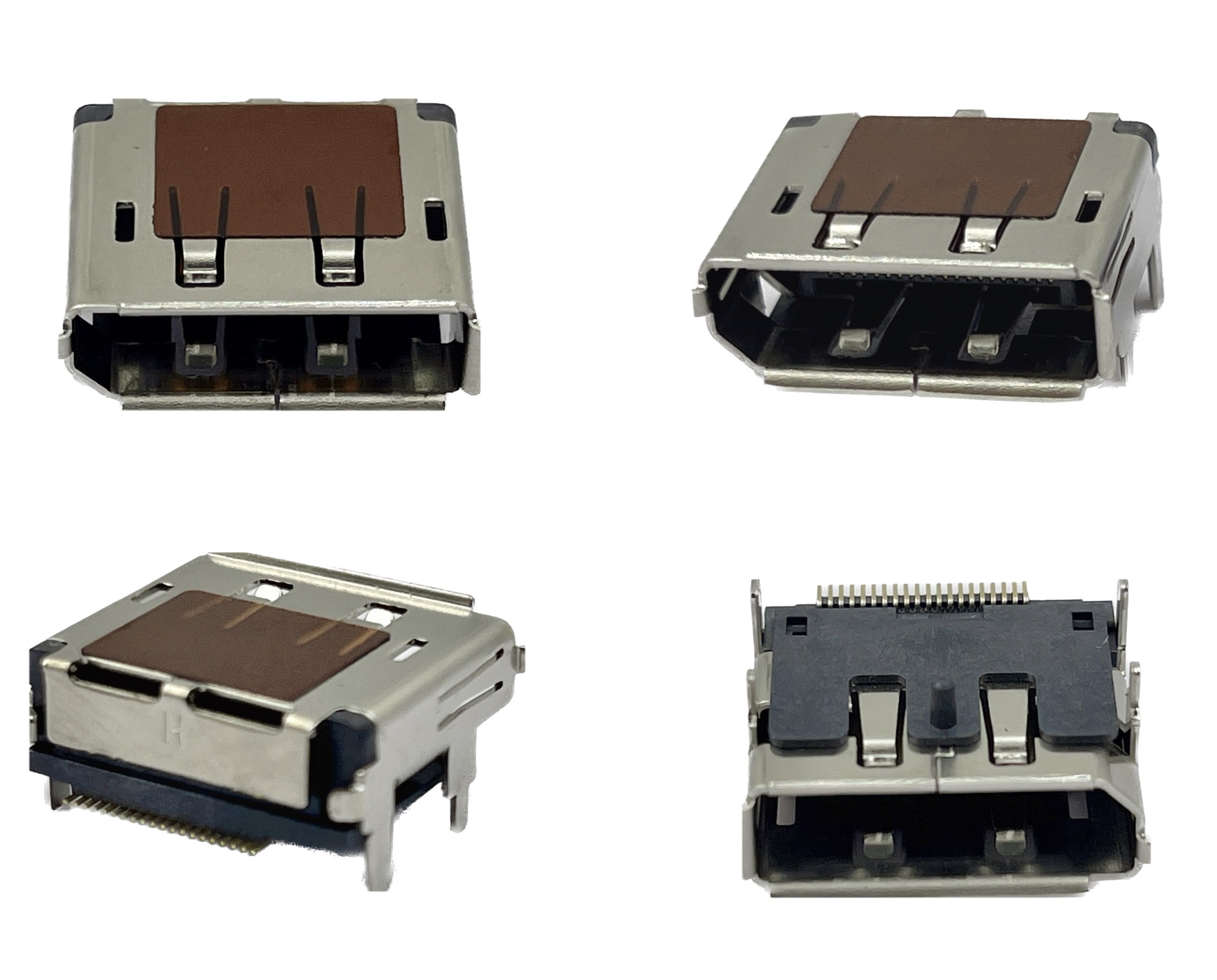

100V SMT USB DP Socket Connector Receptacle 4 Legs Female 5 Pin

Name: 100V SMT USB DP Socket Connector Receptacle 4 Legs Female 5 Pin
Brand: Jinze
Price: 1 USD

Buy cheap 100V SMT USB DP Socket Connector Receptacle 4 Legs Female 5 Pin product

Brand Name : Jinze

Model Number : DP01J-LBB16-RHB

Certification : SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 80000pcs/ Day

Delivery Time : 15-25 Days

Packaging Details : Reel Packaging

Material : LCP UL 94 V-0

Color : Black

Gender : Receptacle (Female)

Application : Information Technology Sector/ Automotive Industry/ Gaming Consoles

Number of Contacts : 20 Contact

Current Rating : 0.5AMP

Mounting Angle : Right Angle

Mounting Style : PCB Mount

Factory Pack Quanity : 330pcs per Reel

Contact Now

20P SMT DP Receptacle 4 legs DIP Female Diplayport Connector 90 Degree

Current Rating	0.5AMP
Contact Resistance	40mΩ Max
Dielectric Withstanding Voltage	100V AC / 1Minute
Insulation Resistance	100mΩ Min
Operation Temperature	-20℃ to +85℃
Contact Material	Brass
Contact Plating	Au or Sn over Ni
Insulator Material	LCP

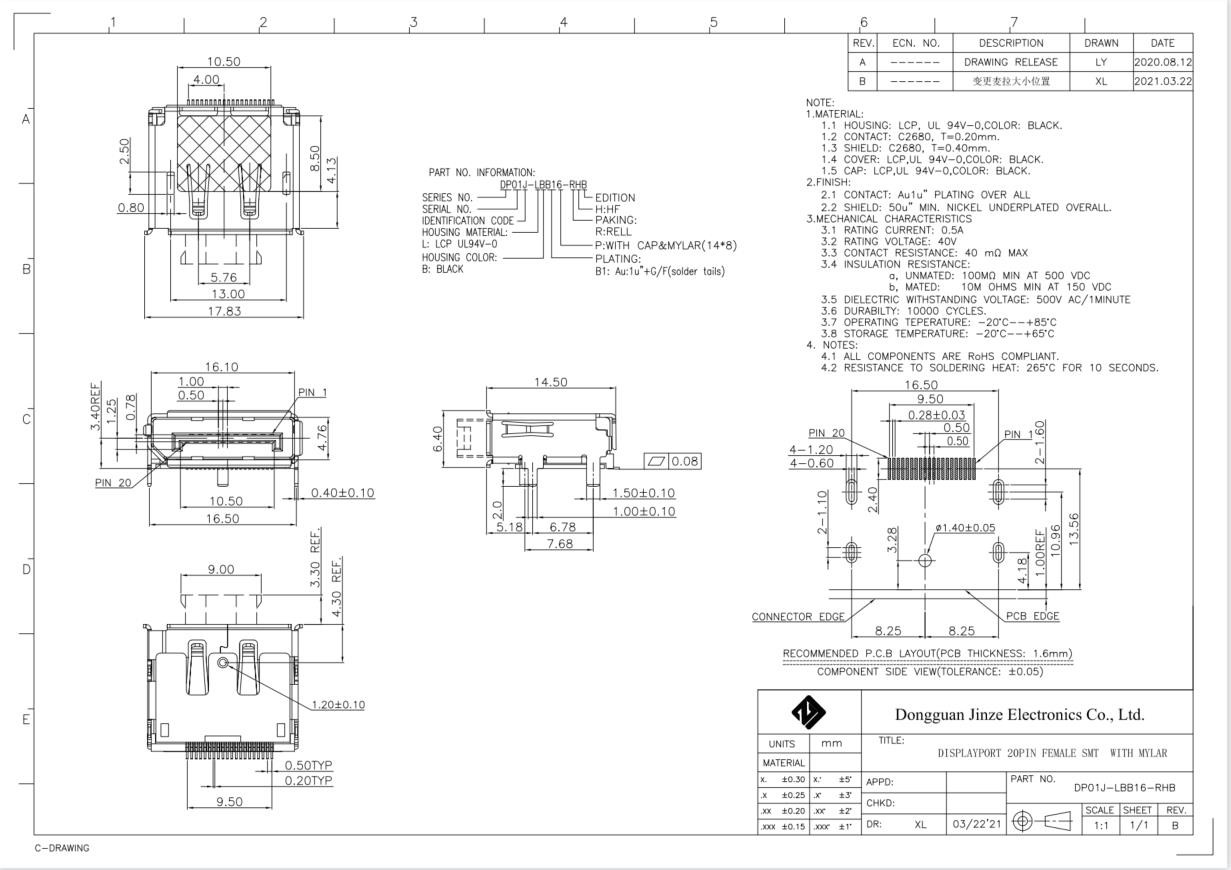

Drawings:

100V SMT USB DP Socket Connector Receptacle 4 Legs Female 5 Pin

Drawings:

100V SMT USB DP Socket Connector Receptacle 4 Legs Female 5 Pin

2D Drawing DP01J-LBB16-RHB.pdf if you need the Drawing, pls download it

ENG-SS-DP01J-LBB16-RHB.pdf if you need the product Specification, pls download it

Application

Products are widely used in banking equipment, computer communication, advertising machine, automotive electronics, smart wear/watch, STB.

Features and Benefits

• PCB space saving footprint
• D-shaped chamfered interface provides polarization
• Fully shielded against EMI and RFI emissions
• Detent locks and latch holes for secure mating connection
• PCB alignment pegs
• PCB solder pegs for in creased rigidity and retention to PCB

Product Application Information

These DisplayPort receptacle connectors form part of the DisplayPort interconnection system which is used for delivering high definition video of up to 10.8 Gbit/s and audio signals. Applications include games consoles, monitors, personal computers, projectors, set-top boxes, TV displays and work stations

Is this socket protected against interference?

Yes, this socket is fully shielded for protection against EMI (electromagnetic interference) and RFI (radio frequency interference), so you can rest assured you'll get reliable signal transmission.
