USB3.1 Type A PCB DIP USB Connector Socket Female 90 Degrees CH1.9mm

Name: USB31 Type A PCB DIP USB Connector Socket Female 90 Degrees CH19mm
Brand: Jinze
Price: 1 USD

Buy cheap USB3.1 Type A PCB DIP USB Connector Socket Female 90 Degrees CH1.9mm product

Brand Name : Jinze

Model Number : UB90A-9LA23-RHA

Certification : SGS/ROHS

Place of Origin : China

MOQ : 1200pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 80000pcs/ Day

Delivery Time : 15-25 Days

Packaging Details : Reel Packaging

Housing : PA9T UL94V-0

Color : Black

Gender : Receptacle (Female)

Application : Power, PCB, Microwave,Computor

Number of Contacts : 9 Contact

Number of Ports : 1 Port

Current Rating : 1.8 AMP

Mounting Angle : Right Angle

Mounting Style : PCB Mount

Factory Pack Quanity : 300pcs per Reel

Contact Now

Specifications:

Housing	PA9T HF+Rohs2.0 UL94 V-0 Blue
Contact	4PIN C5191
	5PIN C2680
Shell	SUS201
Cover	PA9T HF+Rohs2.0 UL94 V-0 Black
Contact Plating	Au 30u" Plated on Contact Area
	Matte-Tin 100u" Min Plated on Solder Tails
	Ni 50u" Min Plated Over all
Shell Plating	Nickel 50u" Min Plated Over all
Contact Current Rating	1.8A For Pin1& 4
	0.25A for other contacts
Contact Resistance	30mΩ Max. initial For Vbus & GND Contacts
	50mΩ Max Initial for All other Contacts
Insulation Resistance	100mΩ Min. at DC 500V
Dielectric Withstanding Voltage	100VAC R.M.S
Mating Force	35N(3.57Kg) Max
Unmating Force	Initial 10N(1.02Kg) Min; After Test 8N(0.816Kg) Min
Operating Temperature	-55ºC~+85ºC
Salt Spray	48H

Images:

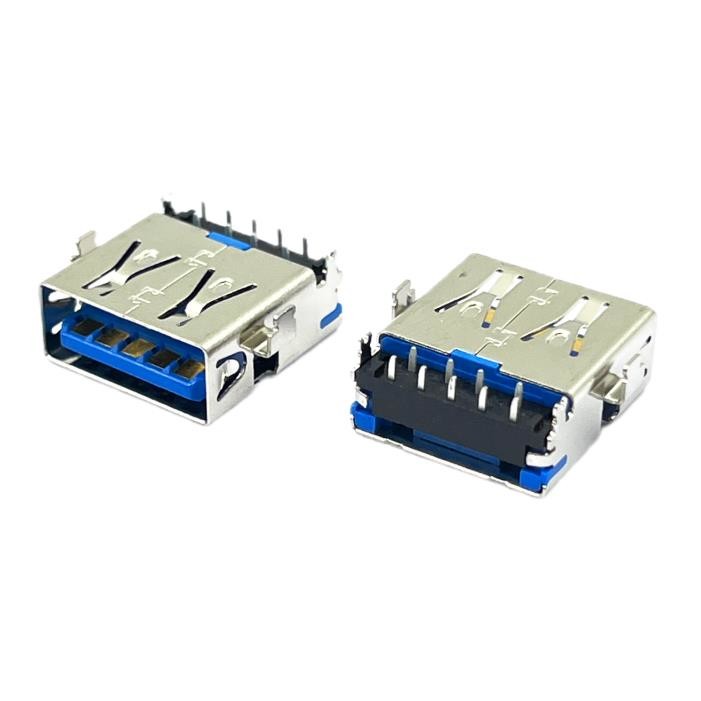

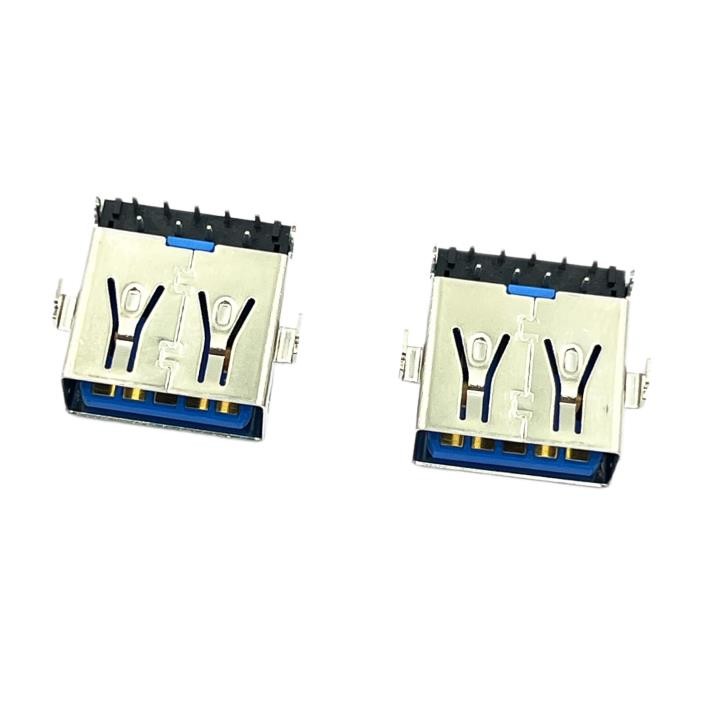

USB3.1 Type A PCB DIP USB Connector Socket Female 90 Degrees CH1.9mm

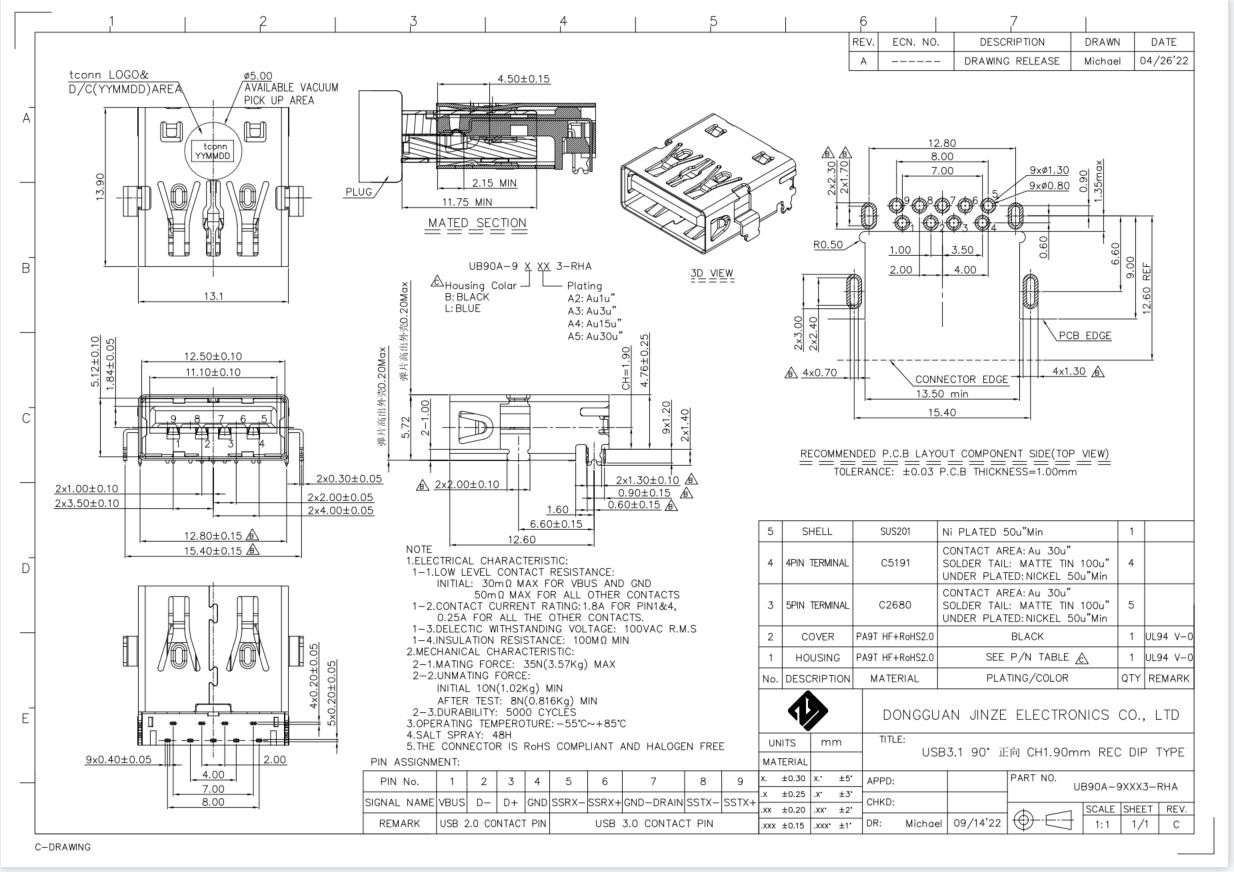

UB90A-9XXX3-RHA.pdf, if you need the Drawing, pls download it!

What is a USB Connector?

A USB connector is the socket, port, or jack into which the plug end of a USB cable or USB-powered device is inserted. USB connectors are typically female, while the USB plug on the cable is male.

Rectangular, slot-shaped USB type-A connectors are most common and can be found on computers, personal electronics, and peripherals. This includes keyboards and mice, mobile phones and chargers, memory sticks (flash drives), and other USB accessories.
